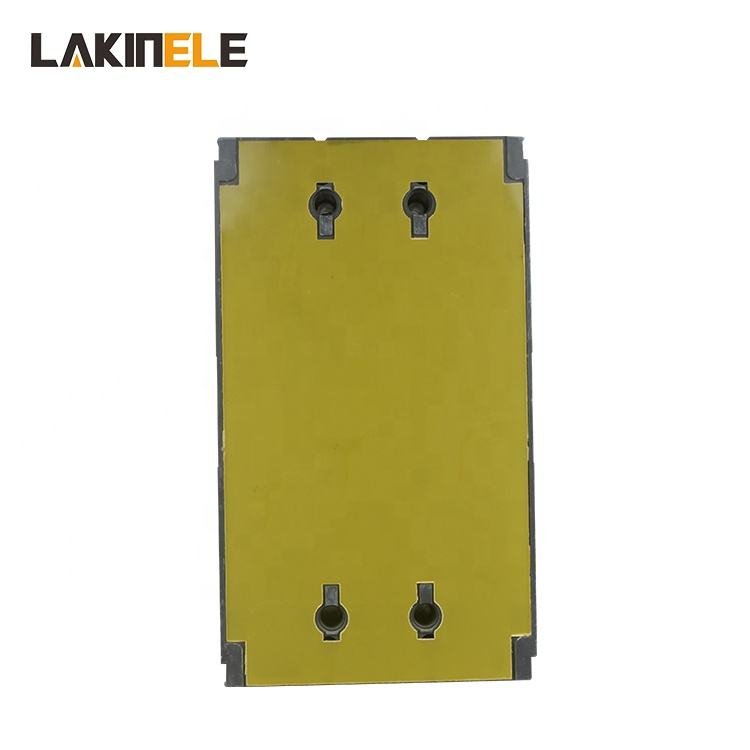

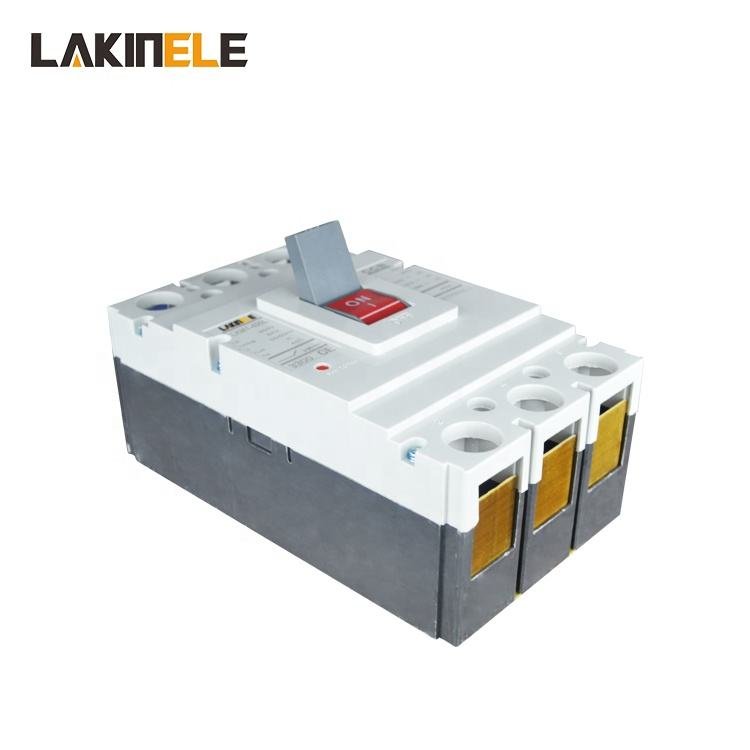

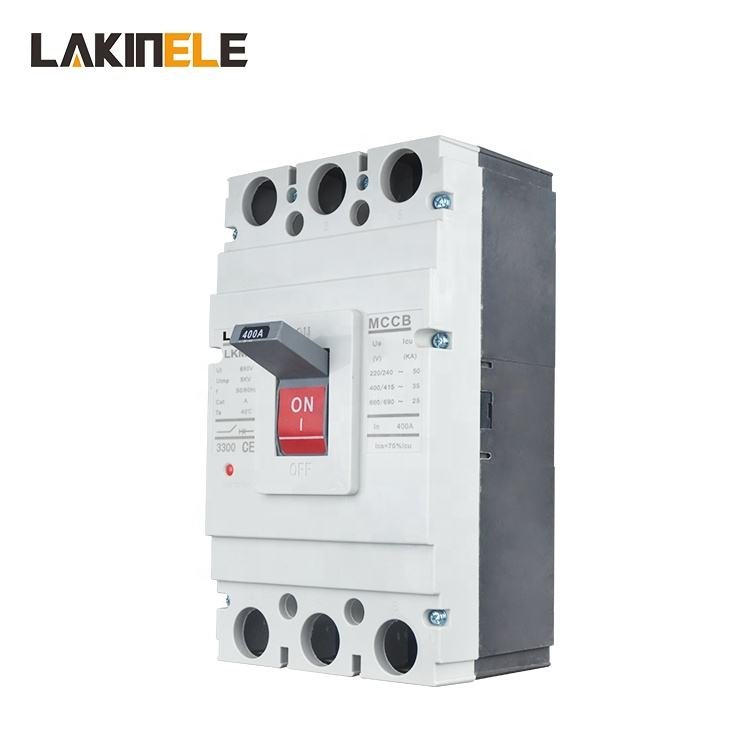

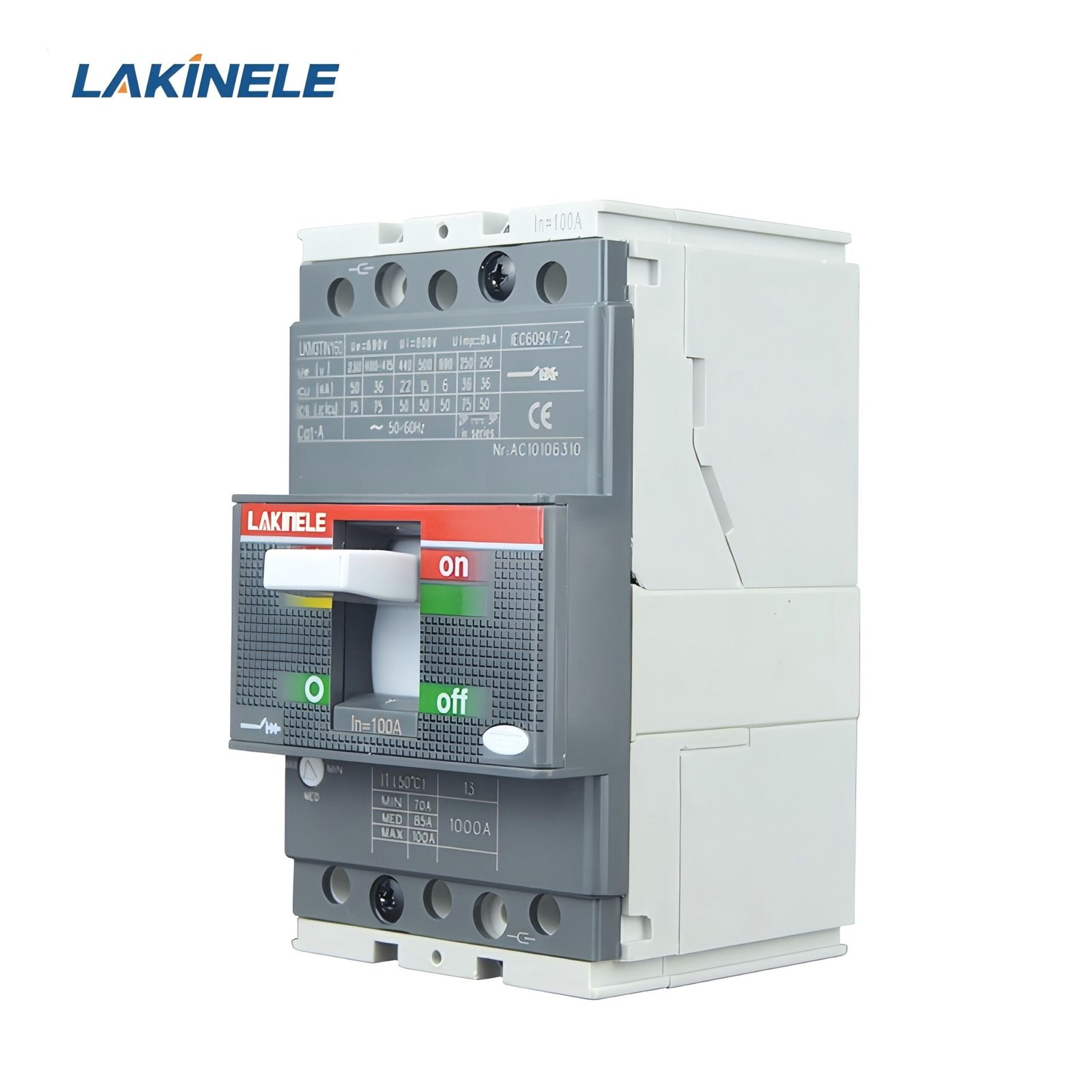

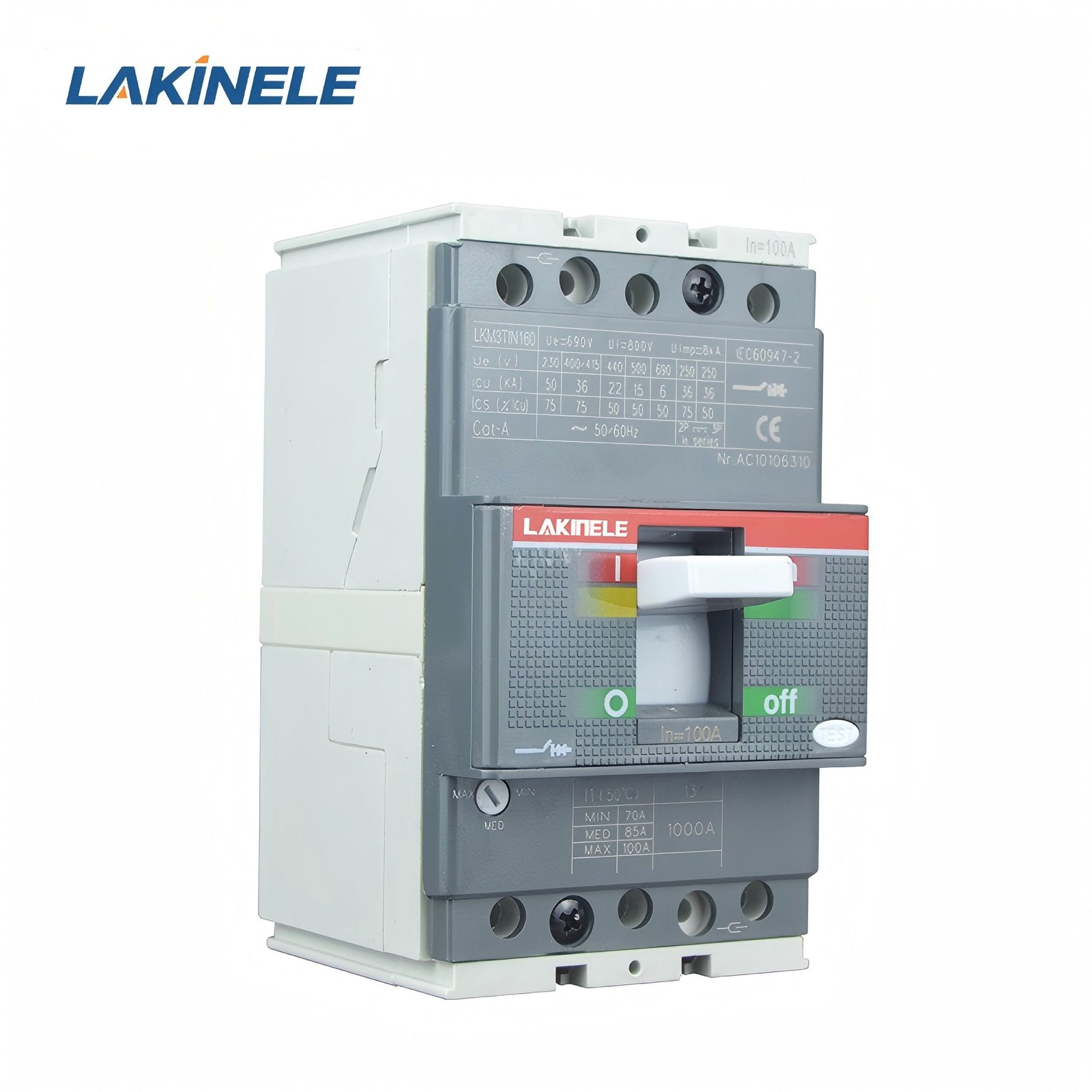

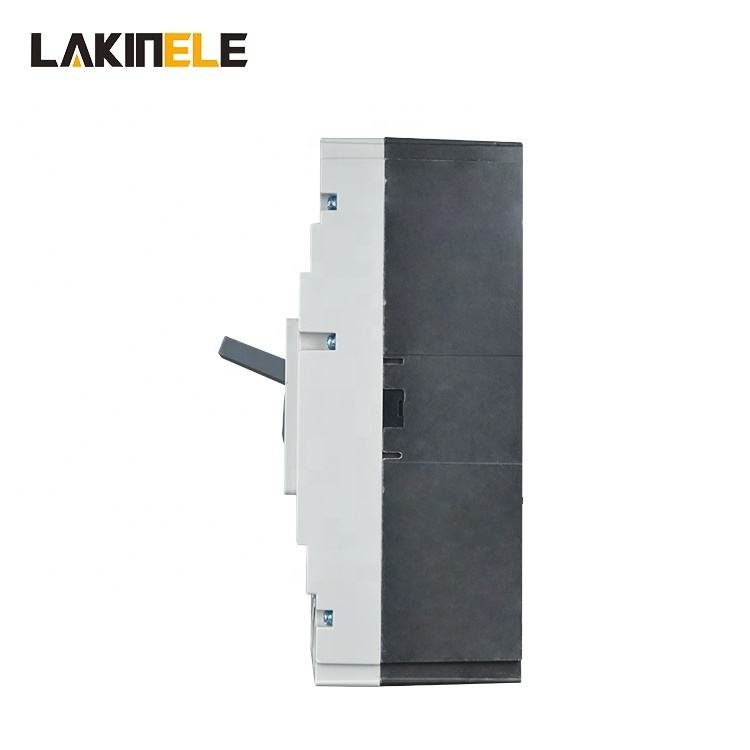

CM1 Series Molded Case Circuit Breaker (MCCB)
Professional Molded Case Circuit Breaker from LAKINELE, CM1 series adopts international advanced design and manufacturing technology. Suitable for AC 50/60Hz, rated working voltage 690V or below, rated working current 400A to 1600A.
Key Features
- High Breaking Capacity: 25kA (N), 75kA (H), 150kA (L) breaking capacity options
- Circuit Protection: Protects against overload, short circuit, and undervoltage
- IEC60947-2 Compliance: Meets international standards for safety and performance
- Wide Voltage Range: Operates efficiently at 690V or below
- CE Certified: Conforms to European safety standards
- Thermal-Magnetic Trip Unit: Reliable protection technology
- Multiple Frame Sizes: 400A, 500A, 630A rated current options
- Compact Design: Space-saving installation in electrical panels
Technical Specifications
| Brand | LAKINELE |
| Series | CM1 (LKM1) |
| Product Name | Moulded Case Circuit Breaker (MCCB) |
| Rated Current In(A) | 400A / 500A / 630A |
| Rated Insulating Voltage Ui(V) | 750V |
| Rated Operating Voltage Ue(V) | 690V or below |
| Short Circuit Breaking Capacity Icu(KA) | 25 / 75 / 150 kA |
| Poles | 3P / 4P |
| Rated Frequency | 50/60 Hz |
| Protection | Overload / Short Circuit / Under Voltage |
| Material | Silver Contact, Copper, High-grade Plastic |
| Standard | IEC60947-2 |
| Certificate | CE / ISO9001 |

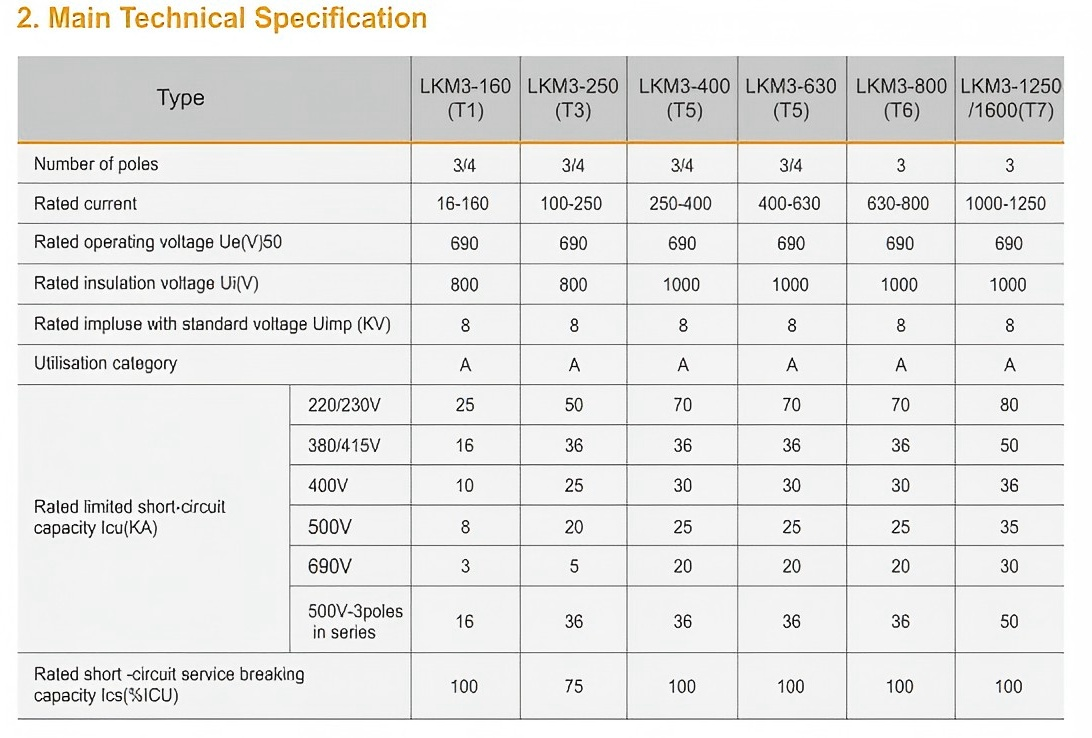

Technical Data
Product Details
Applications
- Industrial power distribution systems
- Motor protection and control
- Solar inverters and renewable energy systems
- Commercial building electrical distribution
- Circuit and equipment overload/short circuit/undervoltage protection
About the Manufacturer
TIANMAI ELECTRIC is a professional manufacturer specializing in MCCB, MCB, and electrical equipment. We are committed to providing high-quality products with international certifications and reliable performance.
- CE, CCC, and ISO9001 certifications
- Products exported worldwide
- OEM/ODM services available
- Professional R&D team and modern production facilities
