Description

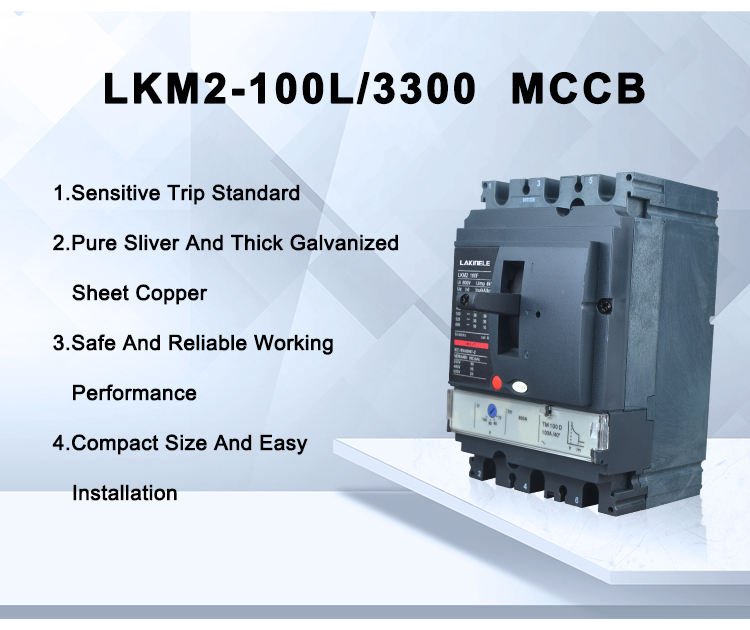

LKM2 Series Moulded Case Circuit Breaker (MCCB)
The LKM2 Series MCCB is one of the circuit breakers that adopts advanced design and international leading-edge manufacturing technology.
- Rated insulation voltage: 750V
- Suitable for: AC 50/60Hz
- Rated working voltage: 690V or below
- Rated working current range: 12.5A to 1600A
- Application: Electric power distribution and infrequent breaking under normal conditions, protecting circuits and equipment from overload and undervoltage
- Motor starting: MCCB with rated frame current of 400A or below can be used for infrequent starting of squirrel-cage motors
- Standard compliance: IEC60947-2
Product Specifications
| Product Series | LKM2 Series |

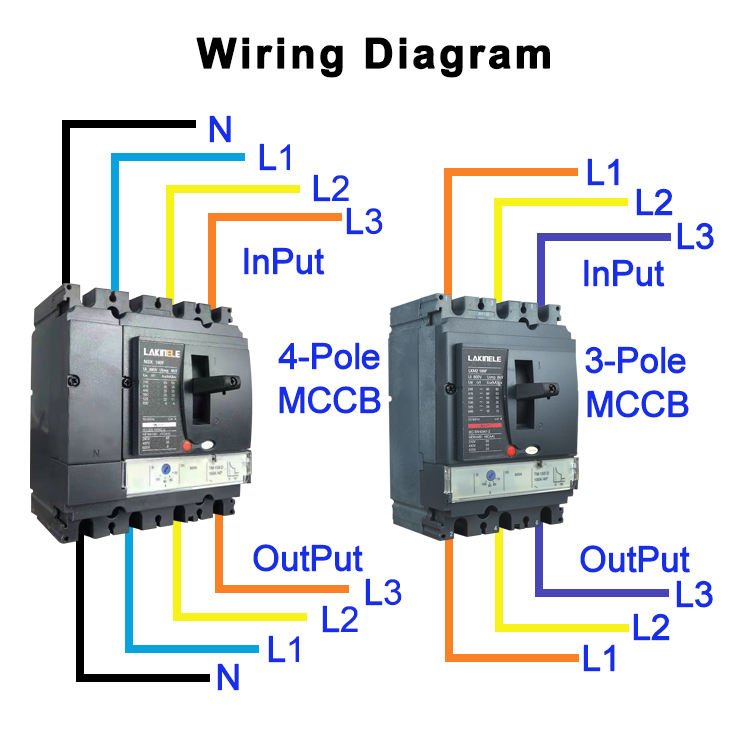

| Poles | 3P / 4P |
| Rated Insulation Voltage (Ui) | 750V |
| Rated Working Voltage (Ue) | 690V and below |
| Rated Working Current | 12.5A – 1600A |
| Breaking Capacity | 25/75/150 kA (N/H/L types) |
| Rated Frequency | 50/60 Hz |
| Technology Type | Intelligent |
| Origin | Zhejiang, China |
| Certification | CE |
Key Features
- CE Certified – Meets EU safety standards for European market entry
- IEC60947-2 Standard Compliance
- High Insulation Voltage – 750V rated insulation voltage
- Wide Current Range – 12.5A to 1600A
- Three Breaking Levels – N(Standard)/H(High)/L(Ultra High)
- Intelligent Trip Unit
- Motor Protection Function
- OEM/ODM Customization Supported
- Competitive Factory Pricing
- Free Samples Available
Commercial Info
Price Range: €3.47 – €43.35
MOQ: 1 piece (Trial orders supported)
Payment: 30% T/T advance, balance before shipment
Delivery: Samples 1-2 working days, bulk depends on quantity
Shipping: DHL/UPS/FedEx/TNT for small orders; Sea or Air for bulk orders
Product Details

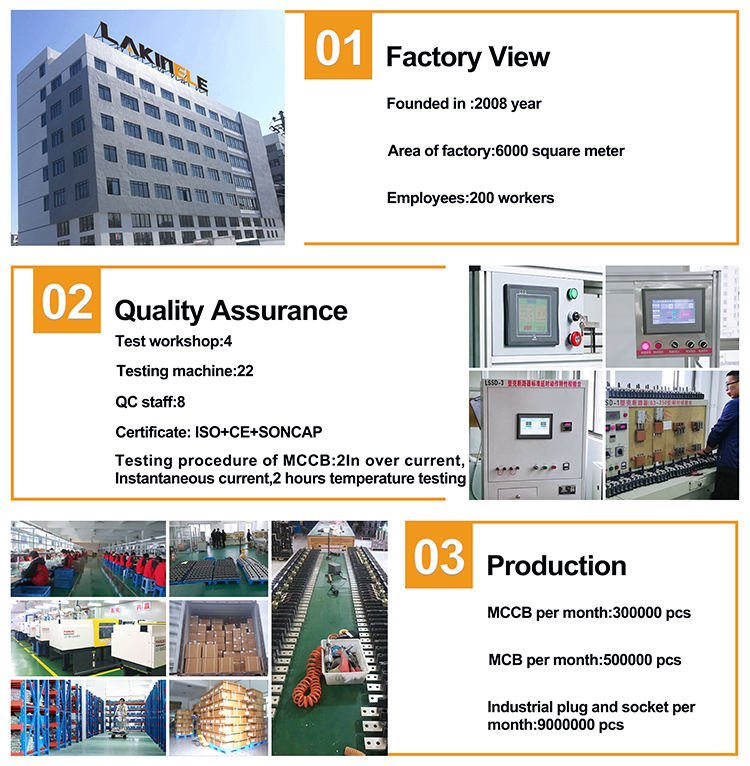

Company Information
